PDF John Deere 7250, 7350, 7450, 7550, 7750, 7850, 7950 Forage Harvester Diagnostic and Test Service Manual TM401319

PDF John Deere 7250, 7350, 7450, 7550, 7750, 7850, 7950 Forage Harvester Diagnostic and Test Service Manual TM401319

Regular price $102.90 USD
Regular price $205.90 USD Sale price $102.90 USD
Sale Sold out
Shipping calculated at checkout.

PDF John Deere 7250, 7350, 7450, 7550, 7750, 7850, 7950 Forage Harvester Diagnostic and Test Service Manual TM401319

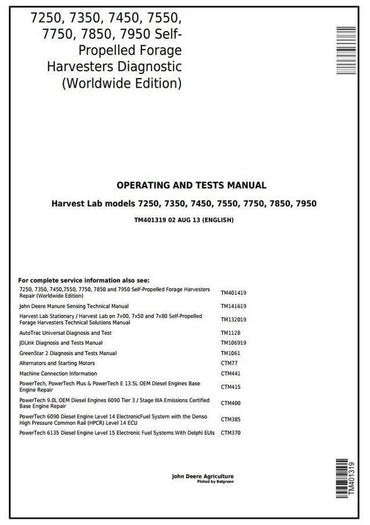

It is Complete Diagnosis and Test Service Manual for John Deere Self-Propelled Forage Harvesters Models 7250, 7350, 7450, 7550, 7750, 7850, 7950 (Worldwide Edition)

This manual contains high quality images, circuit diagrams, diagnostic procedures to help you to diagnostic, troubleshoot and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

This is Diagnostic manual, including electrical and hydraulic wiring diagrams, Repair manual are sold separate.

Covered models:
  7250
  7350
  7450
  7550
  7750
  7850
  7950

Contents:
   Diagnostic Trouble Codes (DTC)
      AMS DTC, GSD4 Display
      AMS DTC, GS2 Display (VTI)
      ARC DTC
      ECU DTC (JD Control Unit Level 14 and 15)
      ECU DTC (Cummins 15 L Engine)
      ECU DTC (Cummins 19 L Engine)
      HHC DTC
      HMS - Harvest Monitor DTC
      IHC - Condition Monitoring System Trouble Codes
      JDL DTC
      JDL3 DTC
      OCP DTC
      PTP DTC (up to SN 509963)
      PTP DTC (from SN 509964)
      RCP DTC
      RDC DTC
      RGC TDC
      SIG DTC
      SPF DTC
      SSU DTC
   Observable Symptoms
   System Diagnostics
   Motor
   Fuel, Air Intake, and Cooling Systems
   Electrical System
      Power Distribution (7250 - 7850)
      Power Distribution (7950)
      Lights
      Power Outlet Sockets
      Wiper
      Outside Mirror
      Ether Starting Aid
      Horn
      Engine Start (7250 - 7850)
      Engine Start (7950)
      Air-conditioning system
      Warning Devices and Monitors
      Area counter functions
      Electronically Controlled Lighting Functions
      Cutterhead control functions
      Engine Cooling Functions
      Engine Speed Control Functions
      Feed roll control functions
      Header Control Functions
      Kernel Processor Functions
      Knife Sharpening Functions
      Electronic Power Control Functions
      Lubrication Control Functions
      Metal Detector Functions
      Drive Train Control Functions
      Row guidance functions
      Stationary Knife Adjust Function
      Spout Control Functions
      Trailer Functions
      System Interlock Functions (7250 - 7850)
      System Interlock Functions (7950)
      On-Board Diagnostic Functions
      CAN Bus System Functions
      GreenStar Display / NIR Sensor
      AutoTrac
      JDLink 3 from SN 509964
      Condition Monitoring System
      Air Compressor
      Functional Schematics - Sections 1 to 47
      Harness Designations
      Location of Wiring Harnesses
   Control Units
      Operation and General Information on Diagnostics
      CAN Bus System
      GreenStar Control Unit (AMS)
      Armrest Control Unit (ARC)
      Engine Control Unit (ECU)
      AHC System
      JDLink Control Unit (JDL)
      Overhead Control Panel Control Unit (OCP)
      ProDrive Control Unit (PTP)
      Cornerpost Control Unit (RCP)
      Rear-Wheel Drive Control Unit (RDC)
      Row Guidance Control Unit (RGC)
      Metal Detector Control Unit (SIG)
      SPFH Main Control Unit (SPF)
      AutoTrac Control Unit (SSU1)
      AutoTrac Steering System/Control Unit for ROW GUIDANCE TYPE II System (SSU2)
   Power Train with 3-Speed Transmission
   Power Train, ProDrive Transmission and Four-Wheel Drive
   Brakes, Steering, Row Guidance II, Rear Axle
   Hydraulic System (Machines with 3-Speed Transmission)
   Hydraulic System (Machines with ProDrive Transmission)
   Operator Enclosure
   Special Tools
   IVLOC Transmission

Language: English
Format: PDF
Pages: 3394

* SEARCHABLE – BOOKMARKED
* COMPATIBLE: All Versions of Windows, Mac, iOS, BB, Android, etc
* LIFETIME ACCESS
* 24X7 CUSTOMER SUPPORT
