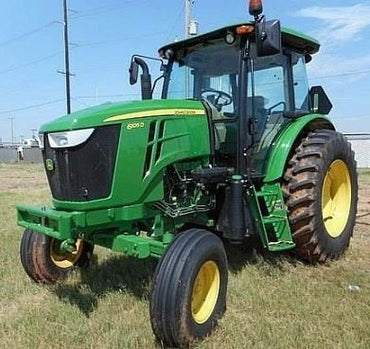

PDF John Deere 6105D, 6115D, 6130D, 6140D Tractor Diagnosis and Test Service Manual TM607319

PDF John Deere 6105D, 6115D, 6130D, 6140D Tractor Diagnosis and Test Service Manual TM607319

Regular price $45.90 USD
Regular price $85.90 USD Sale price $45.90 USD
Sale Sold out
Shipping calculated at checkout.

PDF John Deere 6105D, 6115D, 6130D, 6140D Tractor Diagnosis and Test Service Manual TM607319

This manual contains high quality images, circuit diagrams, instructions to help you to operate, maintenance, diagnostic, and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, cross-links for easy navigation.

Covered models (SN 050001 - 100000):
  6115D
  6130D
  6140D
  6105D

Contents:
   Foreword
   Serial Number Break 2009
   General Information
      Safety Measures
      General References
   Diagnostic Trouble Codes
      BCU Control Unit
      ECU Control Unit
      EPC Control Unit
      PRC Control Unit
      TSC Control Unit
   Observable Symptoms
      Electronics
      Electronic Control Units
      SyncroPlus Transmission
      PowrReverser Transmission
      PowrQuad Transmission
      Drive Train (without Transmission)
      Steering and Brakes
      Hydraulic System
      Miscellaneous
      Operator's Cab
   System Diagnosis
      Electronics
      PowrQuad Transmission
      Hydraulic System
   Engine
      General Information
      Operational Checks
      Tests and Adjustments
   Fuel, Air Intake and Cooling Systems
      Tests and Adjustments
      Fuel System
      Air Intake System
      Cooling System
      Cold-Weather Starting Aids
   Electrical System
      Starting Motor and Charging Circuit
      Fuel Preheater
      Electrical Starting Aid
      Instrument Unit
      Horn
      Operator's Seat and Cigarette Lighter
      Lights
      Worklights
      Radio, Dome Light and Console Light
      Air Conditioning and Fan
      Windshield Wiper and Washer
      Rear Window Wiper and Washer
      Beacon Light
      3-Terminal Power Outlet Socket (SAE)
      3-Terminal Power Outlet Socket (ECE)
      Plug for Accessories
      BCU Control Unit (Electronic Hitch Control)
      BCU Control Unit (Basic Functions)
      Signal Socket and Service Socket
      7-Terminal Power Outlet Socket (ECE)
      7-Terminal Power Outlet Socket (SAE)
      TSC Control Unit (Suspension)
      CAN BUS Terminating Resistor
      Level 16 ECU Control Unit (Electronic Engine Control) for 2-Valve
Engine with HPCR
      Back-Up Alarm
      EPC Control Unit (Transmission Control with PowrQuad Plus Transmission)
      PRC Control Unit (Transmission Control with Electrically Actuated
PowrReverser Transmission)
      SyncroPlus Transmission
      Prewiring for GreenStar
      Component Information - Connectors and Contacts
      Component Information - Connectors (X001 to X249)
      Component Information - Connectors (X250 to X499)
      Component Information - Connectors (X500 to X749)
      Component Information - Connectors (X750 to X999)
      Component Information - Connectors (XGND)
      Component Information - Wiring Harnesses
      Component Information - Electrical Parts/Components
      Component Information - Electrical Parts/Components (Actuators)
      Component Information - Electrical Parts/Components (Sensors/Switches/Potentiometers)
      Component Information - Electrical Parts/Components (Fuses/Relays/Diodes)
      Component Information - Electrical Parts/Components (Headlamps/Lights)
      Component Information - Electrical Parts/Components (Other)
      Component Information - Ground Connections
      Component Information - CAN BUS System
   Electronic Control Units
      Operation and General Information on Diagnostics
      Interactive Tests
      Interactive Calibrations
      Information on How to Reprogram Control Units
      Data BUS Systems
      BCU Control Unit
      ECU Control Unit
      EPC Control Unit
      PRC Control Unit
      TSC Control Unit
   SyncroPlus Transmission
      Operational Checks
      Tests and Adjustments
      Operation
   PowrReverser Transmission
      Operational Checks
      Tests and Adjustments
      Operation
   PowrQuad Transmission
      Operational Checks
      Tests and Adjustments
      Operation
   Drive Train (without Transmission)
      Operational Checks
      Tests and Adjustments
      Front-Wheel Drive Clutch
      Differential
      Final Drives
      Rear PTO Options
   Steering and Brakes
      Introductory Checks
      Operational Checks
      Tests and Adjustments
      Hydrostatic Steering
      Brake Valve
      Rear Brakes
      Handbrake
      Hydraulic Trailer Brake
      Air-Brake System
   Hydraulic System
      Operational Checks
      Tests and Adjustments
      Operation
      Oil Filter, Charge Pump and Hydraulic Pump
      Hitch
      Selective Control Valves (SCVs)
      Independent Control Valves (ICVs)
      Hydraulic block
   Miscellaneous
      Operational Checks
      Tests and Adjustments
      Operation
   Operator's Cab
      Operational Checks
      Tests and Adjustments
      Ventilation/Heating
      Air Conditioning System
   Special Tools
      Special Tools (Dealer-Fabricated)
      Special Tools (Available as Spare Parts)

   Language: English
   Format: PDF, 1666 pages

* SEARCHABLE – BOOKMARKED
* COMPATIBLE: All Versions of Windows, Mac, iOS, BB, Android, etc
* LIFETIME ACCESS
* 24X7 CUSTOMER SUPPORT
